Troubleshooting

Find solutions to common S0tool issues. For additional help, check the GitHub README.

Updating via ESPHome

  1. Open the ESPHome add-on in Home Assistant.
  2. Locate your S0tool device and click the three dots menu.
  3. Select Validate, then click Install.

USB Drivers

Before flashing S0tool for the first time, install the correct USB-to-serial driver for your board's chip. Use Device Manager (Windows) or dmesg (Linux/macOS) to identify the chip.

Chip Common Board OS Driver / Notes
CP2102 Wemos D1 Mini, some NodeMCU Win / Mac / Linux Silicon Labs VCP Driver
CH340 Common clone boards, most cheap ESP8266 Win / Mac sparks.gogo.co.nz — Linux has built-in support
CH341 Older NodeMCU devkits Win / Mac NodeMCU GitHub
FTDI FT232 Some dev boards & USB adapters Win / Mac / Linux FTDI VCP Drivers

macOS 12+: Silicon Labs and FTDI drivers may require manual approval in System Settings → Privacy & Security after installation.

Linux: CH340/CH341 are usually plug-and-play. If not recognized, install linux-modules-extra-$(uname -r) or add yourself to the dialout group: sudo usermod -aG dialout $USER

How do I identify which chip my board uses?

Windows: Open Device Manager → look under Ports (COM & LPT) when the board is plugged in. The chip name appears in parentheses.

macOS/Linux: Run dmesg | tail -20 after plugging in. Look for lines like usb: cp210x converter or ch341-uart.

Visual inspection: The chip is usually a small black IC near the USB connector. Look for markings like CP2102, CH340G, or FT232.

Energy Dashboard

Since Home Assistant 2022.11, you can add your S0tool data to the Energy Dashboard (S0tool v3.0+).

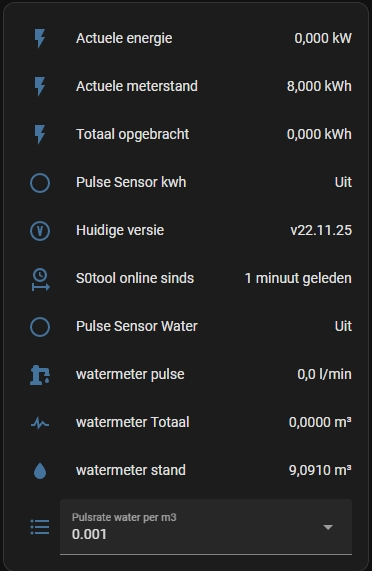

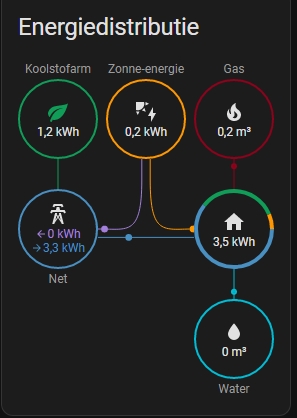

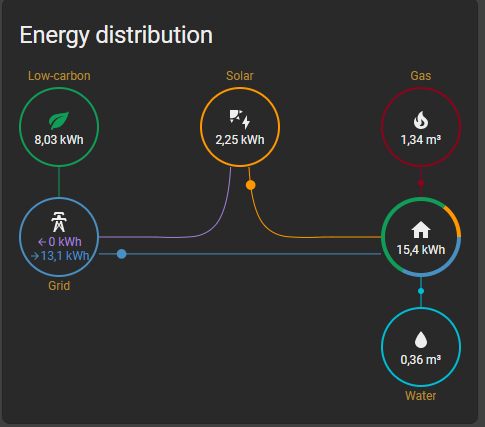

Energy Dashboard S0tool Dashboard
Open Energy Config

Water consumption

  • Search for watermeter Totaal and add it under Water consumption.

Water flow New in v3.6.9New in HA 2026.3.0

  • Since S0tool v3.6.9, add the water flow sensor to the dashboard.
  • Search for watermeter flow and add it under Water flow (Waterdoorstroom).

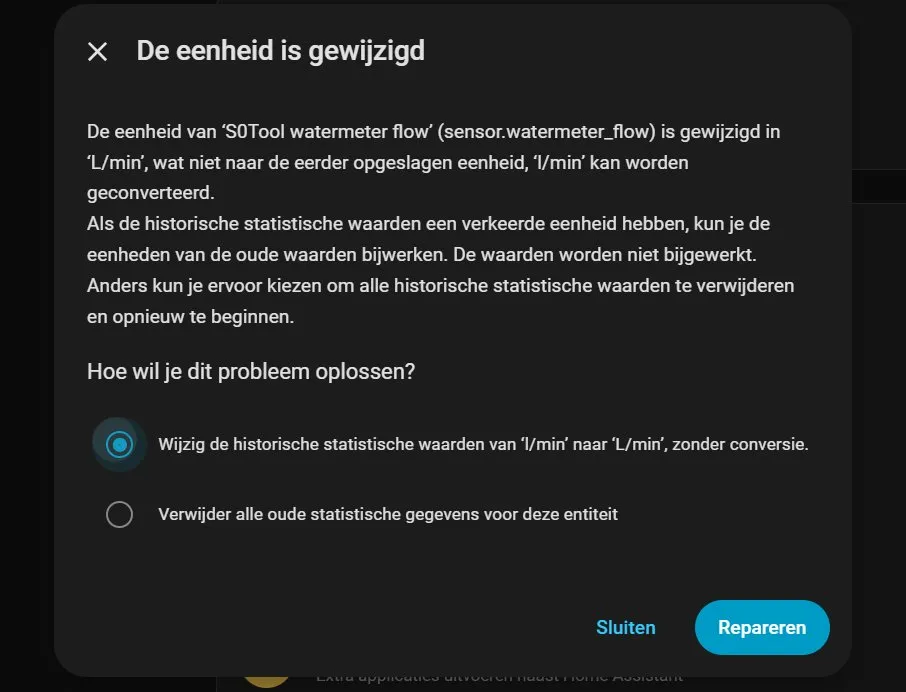

  • If Home Assistant shows a unit warning, choose "Change historical values from 'l/min' to 'L/min' without conversion" and click Repair.

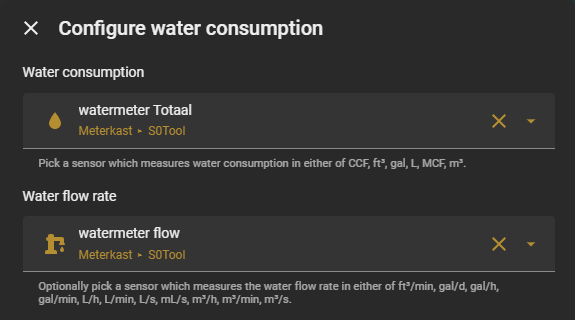

Flow settings Flow Now Dashboard

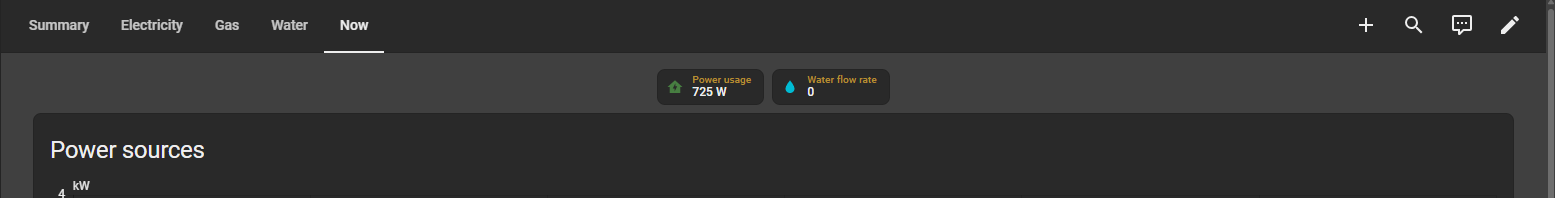

Tip: The flow sensor shows real-time water usage in L/min on the Nu tab of the Energy Dashboard — useful for detecting leaks or high usage.

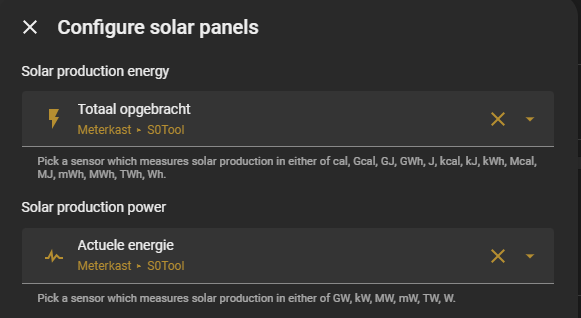

S0 port (kWh / solar)

  • Search for Totaal opgebracht and add it under the relevant energy category.
  • Search for Actuele energie and add it under the relevant energy category.

Individual electrical devices

  • If using the S0tool S0 port for another purpose, you can add individual electrical devices to the Energy Dashboard.
  • Search for Totaal opgebracht and Actuele energie under the relevant energy category.
Individual electrical devices

Changing Total Readings

  • D2 Water Counter — D2
  • D5 S0 Port / kWh — D5
  • Cal Calibration service call

Compatible Water Meters

Brand Model Type Status Region Notes
Elster V200 💧 Water Compatible NL
Itron Aquadis+ 💧 Water Compatible NL

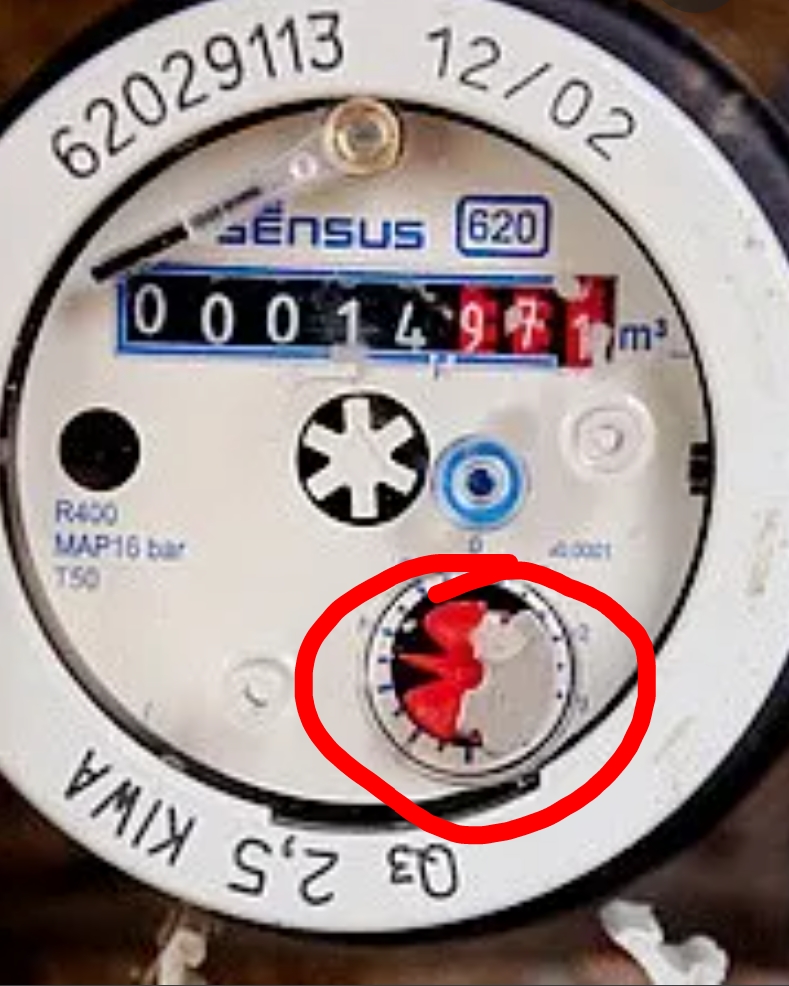

Sensus 620 💧 Water Compatible NL
Maddalena CD SD Plus 💧 Water Compatible BE
Actaris Single-Jet 💧 Water Compatible NL
Zenner MNK-RP-N 💧 Water Compatible DE
Kamstrup Multical 21 💧 Water Compatible EU
Diehl Hydrus 💧 Water Compatible EU

Know a compatible meter? Add it via Community →

Watermeter

Advanced & Problems

S0tool is configurable in the ESPHome dashboard.

Submit a Pull Request or open an Issue. More info (Dutch) at huizebruin.nl.

⚙️ Configuration & Troubleshooting

Automatic Update Notifications & Sensors

Include this package in configuration.yaml:

homeassistant:
        packages: !include_dir_merge_named packages/

Use the following YAML package for S0tool sensors and update checks. Copy it directly to packages/s0tool.yaml in Home Assistant config folder.

# s0tool_package:

#------------------------# S0tool Template Sensors #------------------------#
# Convert watt to kW
template:
  - sensor:
      - name: "current_energy_output"
        state: "{{ (states('sensor.actual_energy') | int / 1000) | round(2) }}"
        icon: mdi:flash
        unit_of_measurement: "kW"
        unique_id: s0tool_W_to_kW

# Convert cubic meters to liters
  - sensor:
      - name: "water_consumption_liters_s0tool"
        unique_id: s0tool_water_liters
        state: "{{ (states('sensor.watermeter_total') | float * 1000) | int }}"
        unit_of_measurement: L
        icon: mdi:water

  - sensor:
      - name: "Water Meter Reading"
        unique_id: water_meter_running_total
        state_class: total_increasing
        unit_of_measurement: m³
        device_class: water
        icon: mdi:gauge
        state: "{{ 428.730 + states.sensor.watermeter_total.state | float }}"

# Binary sensor for S0tool updates
  - binary_sensor:
      - name: "S0tool Update Available"
        unique_id: s0tool_up_to_date
        state: >
          {% set a = states('sensor.s0tool_version_github') %}
          {% set b = states('sensor.s0tool_version') %}
          {{ version(a) > version(b) }}
        device_class: update

# REST sensor to fetch latest GitHub release
sensor:
  - platform: rest
    resource: https://api.github.com/repos/huizebruin/s0tool/releases/latest
    name: s0tool_version_github
    unique_id: s0tool_github_version
    value_template: '{{ value_json.tag_name }}'
    scan_interval: 3600

Automation Blueprint

Import this blueprint to get notified of new S0tool versions:

Import Blueprint
